Khoom Description

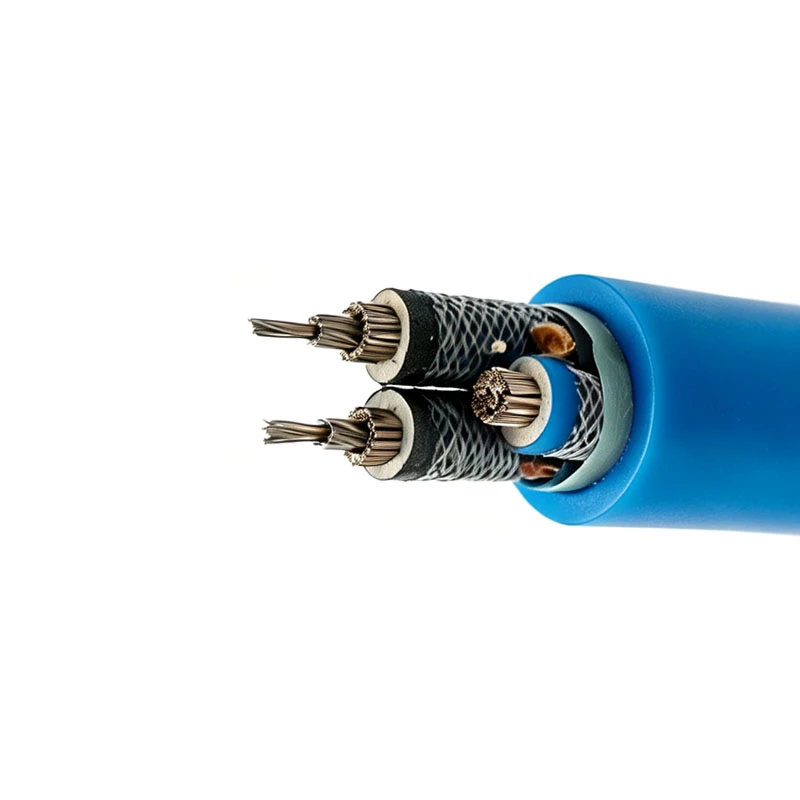

Mining hluav taws xob cables yog hnyav-lub luag haujlwm mobile fais fab & tswj cables tsim rau kuv qhov chaw ua haujlwm, ob qho tib si hauv av thiab qhib- qhov chaw.
Cov cables no tiv nrog kev rub tawm tas li, rub, sib tw, cuam tshuam thiab pob zeb puas. Fine- cov hlua khi tooj liab uas tau muab tso tseg ua haujlwm rov ua dua los tiv thaiv cov hlau qaug zog. Roj hmab rwb thaiv tsev zoo & sheath sawv ntsug rau roj, ya raws, plua plav thiab kev puas tsuaj. Qee cov qauv tuaj nrog cov tswv cuab tensile los yog shielding rau teeb liab stability. Dav haum rau mining shearers, draglines, conveyors thiab txhua yam mobile mining machinery.
|
Rated Voltage |
0.6 / 1 kV |
|
Cross-section |
1.5-120 hli |
|
Qhov kub thiab txias |
-20℃~ +85 degree |
|
Tus coj |
Chav kawm 5 zoo - tso tseg tinned tooj liab |
|
Rwb thaiv tsev tsis kam |
Ntau dua lossis sib npaug li 3000 MΩ·km |
Daim ntawv thov
Daim ntawv pov thawj
ISO Quality Management System Certificate
Kev lees paub rau IEC 60502-2: 2020,
EN IEC 61000-6-1: 2019, EN IEC 61000-6-3: 2021
|
1. Kev tsim kho |
|||||||
|
S/N |
Kev tsim kho |
Kev xav tau |
|
||||
|
1 |
Fais fab core Conductor |
5 Class 5 tinned tooj liab conductor |
|||||
|
2 |
Lub zog core Insulation |
EPR |
|||||
|
3 |
Lub zog core Metal shield |
Tinned tooj liab hlau thiab fiber ntau hybrid braid |
|||||
|
4 |
Grounding conductor |
5 Class 5 tinned tooj liab conductor |
|||||
|
5 |
Ground check core conductor |
5 Class 5 tinned tooj liab conductor |
|||||
|
6 |
Ground check core rwb thaiv tsev |
TPE |
|||||
|
7 |
Sab hauv |
TPU |
|||||
|
8 |
reinforced txheej |
polyester xov paj |
|||||
|
9 |
Txheej txheej |
TPU |
|||||
|
2. Kev txheeb xyuas kab Cov ntsiab lus tseem ceeb: Lub zog tseem ceeb: dub, dawb, liab; Lub hauv paus check core: yellow. Sheath xim: Blue 3. Kev ua raws cai ICEA S-75-381 |
|||||||
|
4.Daim ntawv thov |
|||||||
|
S/N |
Yam khoom |
Kev xav tau |
|||||
|
1 |
Rated voltage |
DC 2000V |
|||||
|
2 |
Ua haujlwm kub |
'-40 ~ 90 degree |
|||||
|
3 |
Yam tsawg kawg bending radius |
6D |
|||||
|
S/N |
No. ntawm cores × seem cheeb tsam |
Tus qauv ntawm tus neeg xyuas pib |
Kwv yees li. dia. ntawm tus neeg xyuas pib |
Nominal thwj. ntawm rwb thaiv tsev |
Nominal thk.of sheath |
Kwv yees li. OD ntawm kab |
Kwv yees li. hnyav ntawm kab |
|
nr. × sqm |
no./mm |
mm |
mm |
mm |
mm |
kg/km |
|
|
1 |
3×240+2×95+1×16 |
1147/0.50, 703/0.40, 119/0.40 |
20.5/12.8/5.1 |
2.5/1.2 |
4.2 |
72.8±6.5 |
12018 |
|
5. Cov yam ntxwv hluav taws xob |
|||||||
|
S/N |
Tsis muaj cores × seem cheeb tsam × |
Max. DC tsis kam ntawm tus neeg xyuas pib @ 20 degree |
Voltage tiv thaiv kev sim |
||||
|
nr. × sqm |
Ω/km |
kV / min, tsis muaj kev puas tsuaj |
|||||
|
1 |
3×240+2×95+1×16 |
0.0817/0.210/1.24 |
9.5/5 |
||||
Huayu Mining Hluav Taws Xob Cable Kev Pabcuam
- Chav Kawm 5 tau hloov pauv tau zoo heev tinned tooj liab, muaj sia nyob 2.8 lab+ rub- khoov cycles hauv mine tej yam kev mob, txo tus neeg xyuas pib ua tsis tiav
- 0.6 / 1kV ua hauj lwm ntsuam xyuas, muab lub zog sib xws thiab tswj cov cim rau hnyav - thauj khoom hauv av & qhib- cov khoom siv mining
- 68dB tiv thaiv kev ua tau zoo, txwv tsis pub lub cev muaj zog hnyav-tsim suab nrov kom tswj cov circuits ruaj khov
- Rwb thaiv tsev zoo dua los yog sib npaug rau 3000 MΩ·km, tswj tsis tshua muaj to hauv cov dej ntub dej, plua plav, pob zeb- cov chaw ua haujlwm tawg.
- Ua haujlwm ntseeg tau los ntawm -20℃mus rau +85 degree, mine -cov roj hmab tshwj xeeb muaj lub zog tsim kua muag-ua haujlwm, roj ua haujlwm thiab kev ua haujlwm tsis zoo
- Kev xaiv ntau lub hnab: cov roj hmab dav dav, mine - nplaim taws - retardant, kev cai sib xyaw kom haum rau cov qauv sib txawv mine project
- Txhua qhov ntau lawm ua tiav cov kev ntsuas cuam tshuam thiab kev tshuaj xyuas hluav taws xob tag nrho ua ntej xa khoom
FAQs
Q1: Dab tsi yog qhov kev pheej hmoo rau mining hluav taws xob cables?
A: Tus neeg xyuas pib breakage thiab sheath puas los ntawm tas li dragging, cuam tshuam thiab pob zeb txhuam. Peb cov cable hla dhau 2.8 lab+ rub-kev sim khoov lub voj voog, kuv li- qib roj hmab sheath ua rau txo qis kev pheej hmoo ntxov ntxov.
Q2: Cov kab no puas tuaj yeem ua haujlwm hauv av thiab qhib -qhov mines?
A: Yog. Nws ua haujlwm tsis tu ncua ntawm -20℃~ +85℃. Lub sheath tswj cov av noo nyob rau hauv av nrog rau sab nraum zoov UV, plua plav thiab roj raug nyob rau hauv qhov chaw qhib.
Q3: Koj puas tuaj yeem muab cov kev cai daws teeb meem rau cov qauv kev lag luam hauv zos?
A: Tseeb. Peb muab cov qauv roj hmab, kuv- nplaim taws- cov qib retardant sheath. Txhua batch mus los ntawm txhua yam cuam tshuam thiab tag nrho cov hluav taws xob kuaj ua ntej xa khoom.
